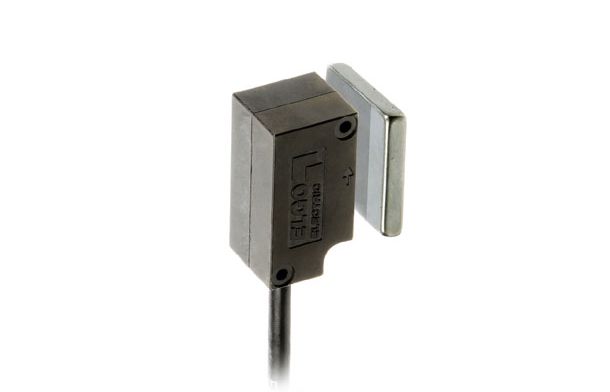

樓層傳感器，用于電梯應用對高層建筑的門區進行精確檢測

準確檢測門區
可進行自動學習過程
節省空間的簡單安裝
抗污、抗潮濕、抗煙
IP67高防護等級

技術參數：

MECHANICAL DATA

Repeat accuracy                        ± 1 mm

Distance between sensor and magnetic    3 ... 25 mm

Tape

Lateral guiding tolerance                 ± 0.5 mm

Sensor housing material                  zinc die casting

Sensor housing dimensions (L x W x H)     sensor: 50 x 24 x 26 mm

                                                                        magnet: 30 x 30 x 6 mm

Connection                              open cable ends

Weight                                approx. 40 g without cable, cable approx. 60 g per meter

ELECTRICAL DATA

Power supply                            24 VDC ± 20%
Periodic and random deviation             24V: <10%
Current consumption                     max. 40 mA
Output signals                          LOW-aktiv, push/ pull - short circuit proof
Sensor cable                           5 m standard cable length, others on request, drag chain compliant

ENVIRONMENTAL CONDITIONS

Storage temperature                    -25 ... +85 °C
Operation temperature                  -10 ... +70 °,  -25 ... +85 °C on request
Protection class (sensor)                IP67

MAGNET

dimensions (L X B X H)                  30 x 30 x 6 mm
storage temperature                     -5 ... +65 °C
operation temperature                   -25 ... +85 °C
protection class                         IP67
