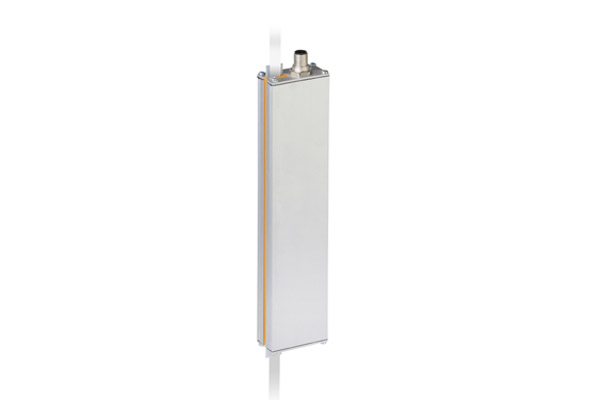

LIMAX2M電梯井道信息系統絕對式電梯轎廂位置檢測，提升高度可達130米

提升高度可達130米 | 速度可達4米/秒
入門級型號，價格有吸引力
完全適用于標準范圍內的新安裝，以及用于現代化和改造
絕對式位置檢測-無需尋參
抗污、抗煙、抗潮濕
簡單、靈活的安裝
廣泛的接口范圍：CAN、CANopen（DS406或DS417）、RS422、RS485或SSI （格雷碼或二進制碼）

技術參數：

MECHANICAL DATA

Measuring principle              absolute

Reperat accuracy                ± 1 increment

System accuracy in μm at 20 °C   ± (1000 + 100 x L), L= measuring length in meters

Distance sensor/ tape            correct distance is guaranteed by guidance

Housing material                aluminium

Housing dimensions

247 x 54 x 27 mm(W x B x H)

Required magnetic tape          AB20-80-10-1-R-D-15-BK80

Basic pole pitch (magnetic tape)   8 mm

Max. measuring length           130 m

Connections                  standard: M12 round connector (5 or 8 pin - depends on interface), on request: RJ45 connector

Sensor cable                   standard length: 3.0 m, with M12 socket, others on request

 Weight                       approx. 320 g without cable, cable: approx. 60 g per meter

ELECTRICAL DATA

Power supply voltage           10 ... 30 VDC
Residual ripple                 < 200 mVpp
Current consumption           max. 200 mA
Interfaces                     CAN, CANopen (DS406 or DS417), RS422, RS485 or SSI (Gray or binary)
Resolution                   standard: 1 mm, optional: 0.5/ 0.25/ 0.125/ 0.625 mm
Maximum operating speed        4 m/s

ENVIRONMENTAL CONDITIONS

Storage temperature              -25 ... +85 °C
Operating temperature            -10 ... +70 °C,  -25 ... +85 °C on request
Humiditiy                        95 %, non-condesing
Protection class                  IP54 (standard), IP67 (on request)
